SDEC H Generator Drive Engine
The H series diesel engine is jointly designed RICARDO (UK) based on the market demand characteristics in China and by reference to the mature technologies of advanced engines in the world.
The H series is a world-class power platform developed and made in accordance with GPDP development process and the SAIC MOTOR manufacturing standards. Characterized by compact structure, wide power range, high reliability, good economy and low vibration noise.
This series is currently the most advanced product in terms of technology and quality of diesel engines in the power range of domestic main 50-160 kW units. It has outstanding fuel economy and low vibration and noise advantages, and can realize dual-frequency switching in one machine, which is more conducive to quality improvement and emission upgrade.
The 4-valve structure, the optimal design of the airway vortex ratio and the combustion chamber achieve higher intake efficiency; P7100 fuel injection pump and vertical center injector arrangement, the application of new fuel atomization mixing technology, fuel consumption savings of 8-10 %.
The body B10 has a life of more than 15,000 working hours and is safe and reliable. Using electronic governor, high adjustment precision, effective control of engine state characteristics.
Integral cylinder head, rear spur gear chamber, elastic connection, modular design, small size, light weight, low vibration noise.
Without intake heating auxiliary device, cold starting temperature is -15℃, strong adaptability to the environment.
General Specifications of H G-Drive Engine
| Engine Type: | 4 – 6 Cylinders |
| Displacement: | 4.3- 6.5 L |
| Rated Speed: | 1500 – 1800 RPM |
| Emission Standard: | Euro III |
| Fuel System: | Direct injection |
| Standby Power: | 68 – 226 kW @ 1500 – 1800 RPM |
| Prime Power: | 62 – 205 kW @ 1500 – 1800 RPM |
| Bore * Stroke: | 105 mm * 124 mm |
| Dry Weight: | 450 – 600 kg |
| Packing Size(L * W * H): | N/A |
Engine Model | Prime Power | Governor Type | Engine Model | Prime Power | Governor Type | ||
| 4HT4.3-G21 | 62 kW @ 1800 RPM | N/A | 4HT4.3-G22 | 67 kW @ 1800 RPM | N/A | ||
| 4HT4.3-G23 | 86 kW @ 1800 RPM | N/A | 4HTAA4.3-G21 | 105 kW @ 1800 RPM | N/A | ||
| 4HTAA4.3-G22 | 120 kW @ 1800 RPM | N/A | 4HTAA4.3-G23 | 120 kW @ 1800 RPM | N/A | ||
| 4HTAA4.3-G31 | 62 kW @ 1800 RPM | N/A | 4HTAA4.3-G32 | 67 kW @ 1800 RPM | N/A | ||
| 4HTAA4.3-G33 | 86 kW @ 1800 RPM | N/A | 4HTAA4.3-G34 | 105 kW @ 1800 RPM | N/A | ||
| 4HTAA4.3-G35 | 120 kW @ 1800 RPM | N/A | 4HTAA4.3-G36 | 125 kW @ 1800 RPM | N/A | ||
| 6HTAA6.5-G21 | 136 kW @ 1800 RPM | N/A | 6HTAA6.5-G22 | 150 kW @ 1800 RPM | N/A | ||
| 6HTAA6.5-G23 | 180 kW @ 1800 RPM | N/A | 6HTAA6.5-G31 | 136 kW @ 1800 RPM | N/A | ||
| 6HTAA6.5-G32 | 150 kW @ 1800 RPM | N/A | 6HTAA6.5-G33 | 180 kW @ 1800 RPM | N/A | ||
| 6HTAA6.5-G34 | 205 kW @ 1800 RPM | N/A | 6HTAA6.5-G35 | 170 kW @ 1800 RPM | N/A | ||
| SC4H95D2 | 62 kW @ 1500 RPM | N/A | SC4H115D2 | 78 kW @ 1500 RPM | N/A | ||
| SC4H140D2 | 95 kW @ 1500 RPM | N/A | SC4H160D2 | 105 kW @ 1500 RPM | N/A | ||
| SC4H180D2 | 120 kW @ 1500 RPM | N/A | SC7H180D2 | 120 kW @ 1500 RPM | N/A | ||
| SC7H205D2 | 138 kW @ 1500 RPM | N/A | SC7H220D2 | 150 kW @ 1500 RPM | N/A | ||
| SC7H230D2 | 154 kW @ 1500 RPM | N/A | SC7H250D2 | 168 kW @ 1500 RPM | N/A | ||
| ——END—— | |||||||
SDEC H Series G-Drive Engine
This list including all models of SDEC H Series G-Drive Engine.
Click here to find G-Drive engines by type (Engine Speed).
SDEC 4HT4.3-G21 G-Drive Engine
Prime Power : 62 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HT4.3-G22 G-Drive Engine
Prime Power : 67 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HT4.3-G23 G-Drive Engine
Prime Power : 86 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HTAA4.3-G21 G-Drive Engine
Prime Power : 105 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HTAA4.3-G22 G-Drive Engine
Prime Power : 120 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HTAA4.3-G23 G-Drive Engine
Prime Power : 120 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection

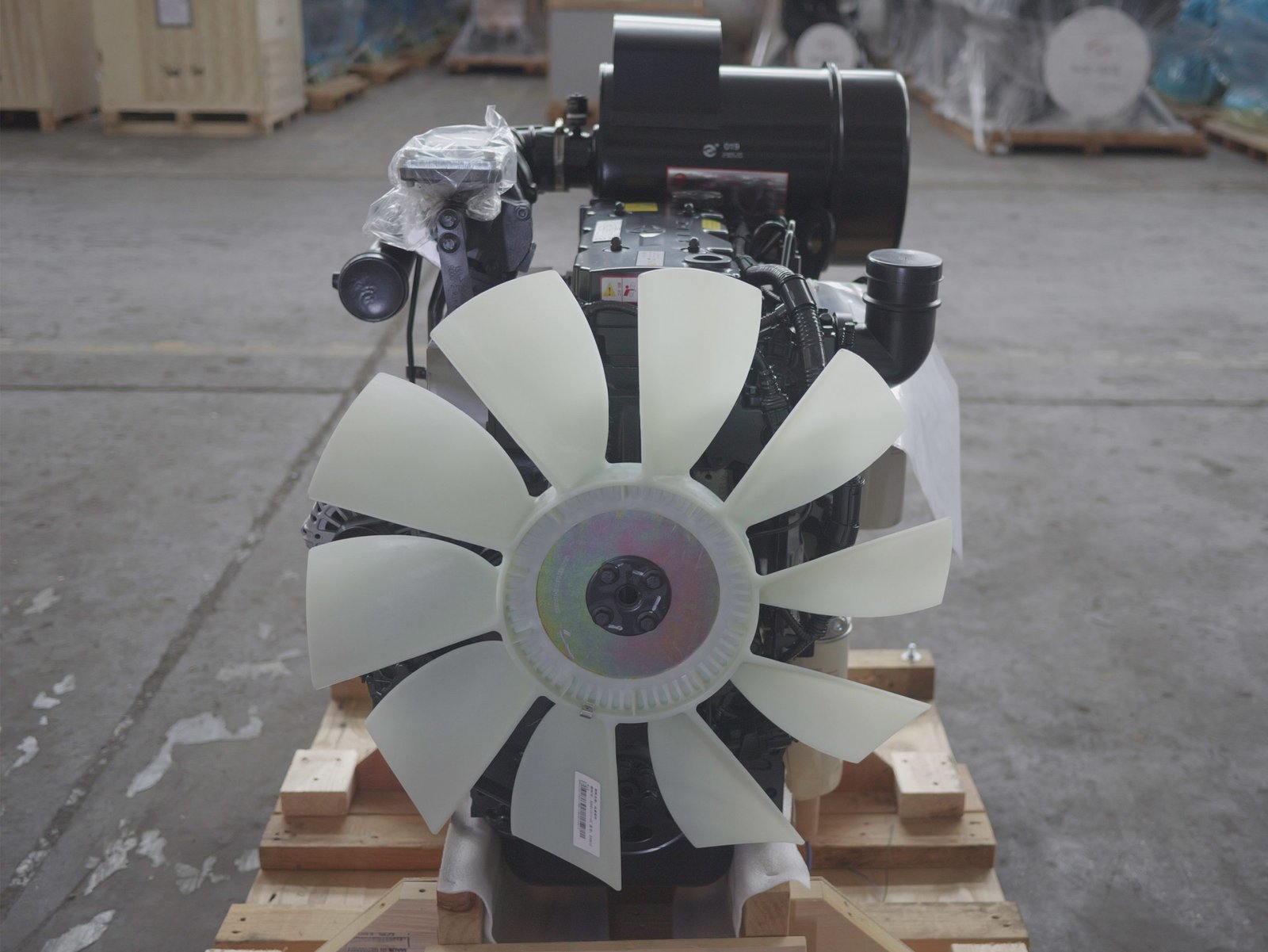

SDEC 4HTAA4.3-G31 G-Drive Engine
Prime Power : 62 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HTAA4.3-G32 G-Drive Engine
Prime Power : 67 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection

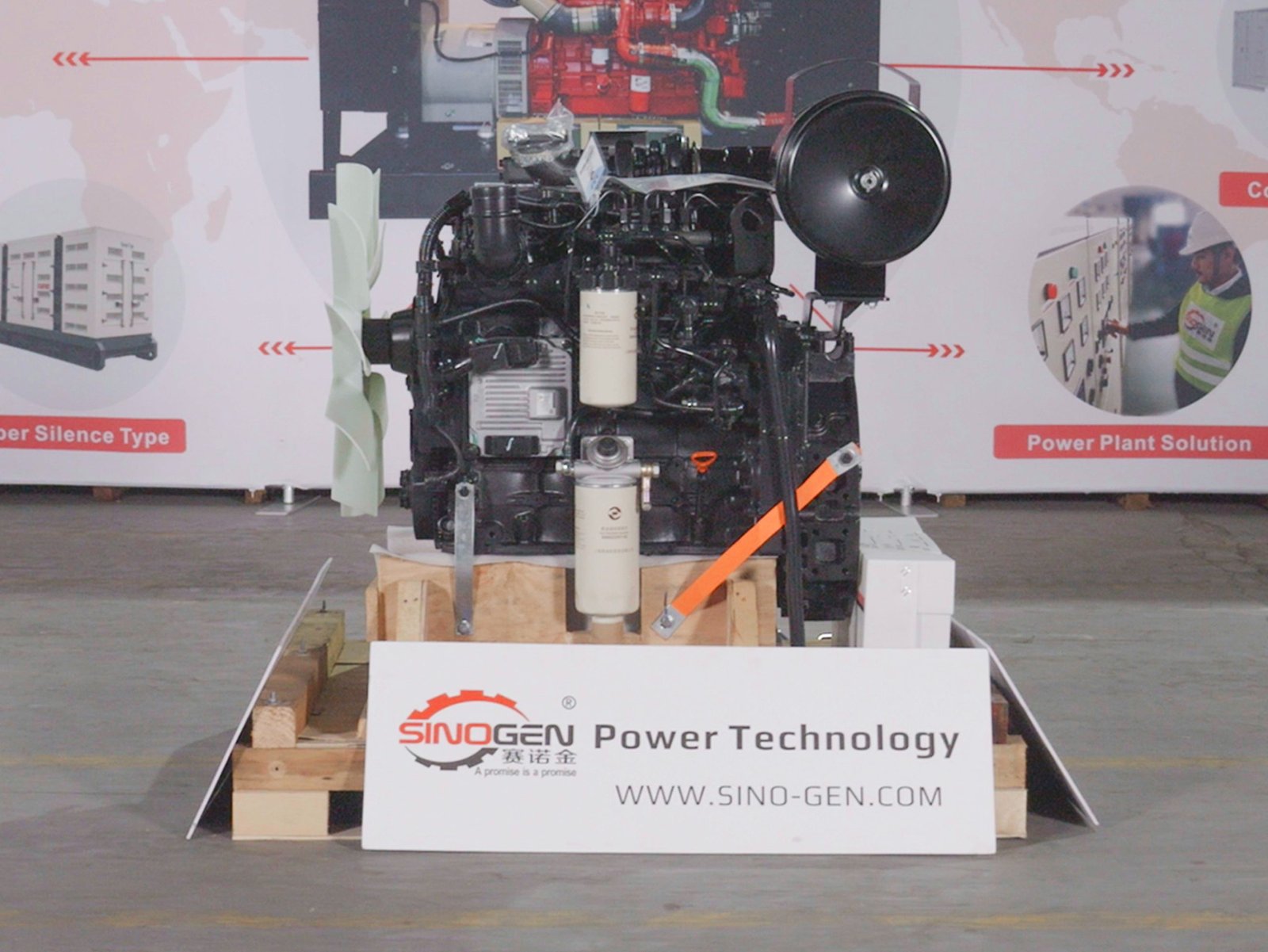

SDEC 4HTAA4.3-G33 G-Drive Engine
Prime Power : 86 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 4HTAA4.3-G34 G-Drive Engine
Prime Power : 105 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection

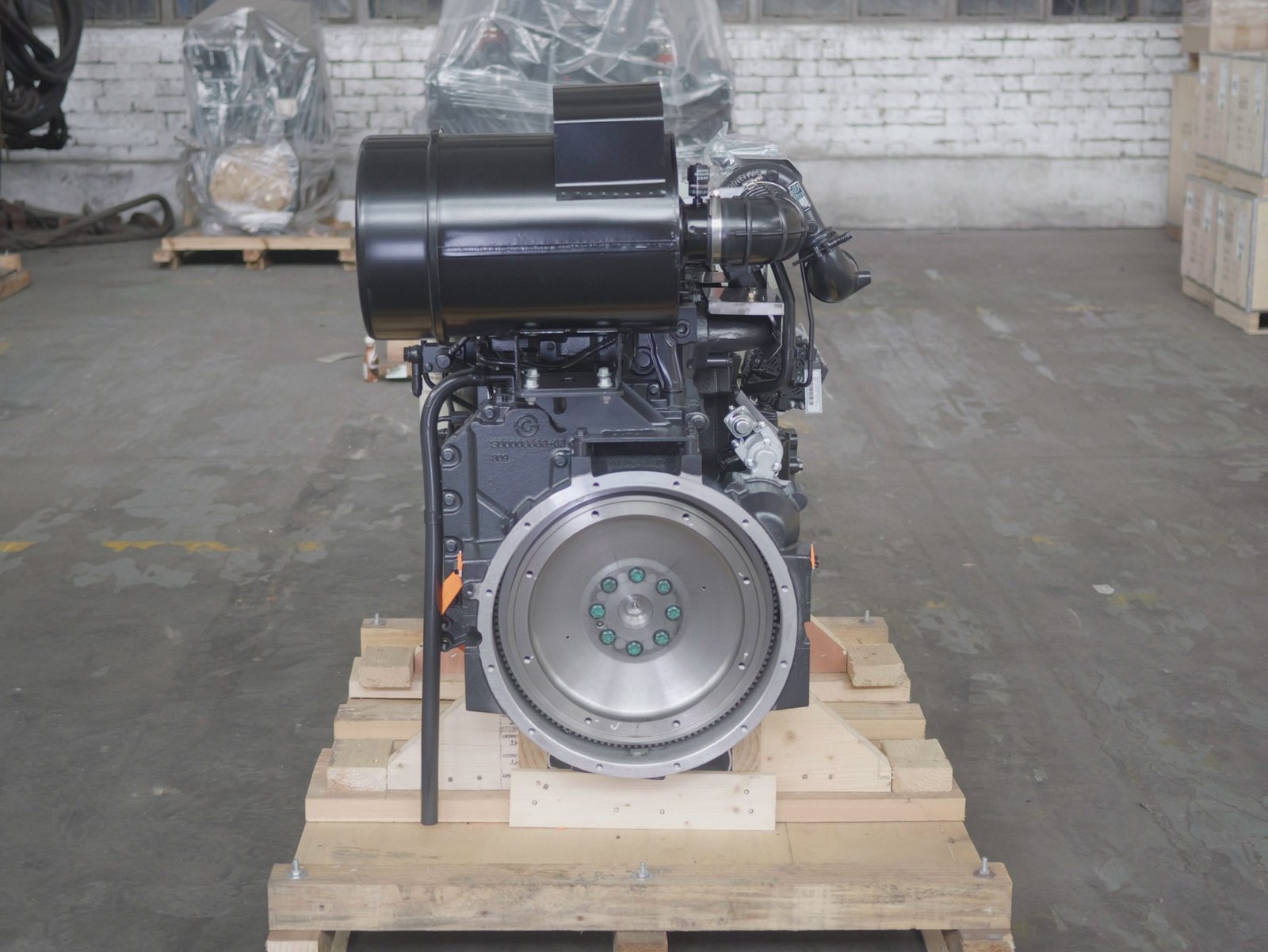

SDEC 4HTAA4.3-G35 G-Drive Engine
Prime Power : 120 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection

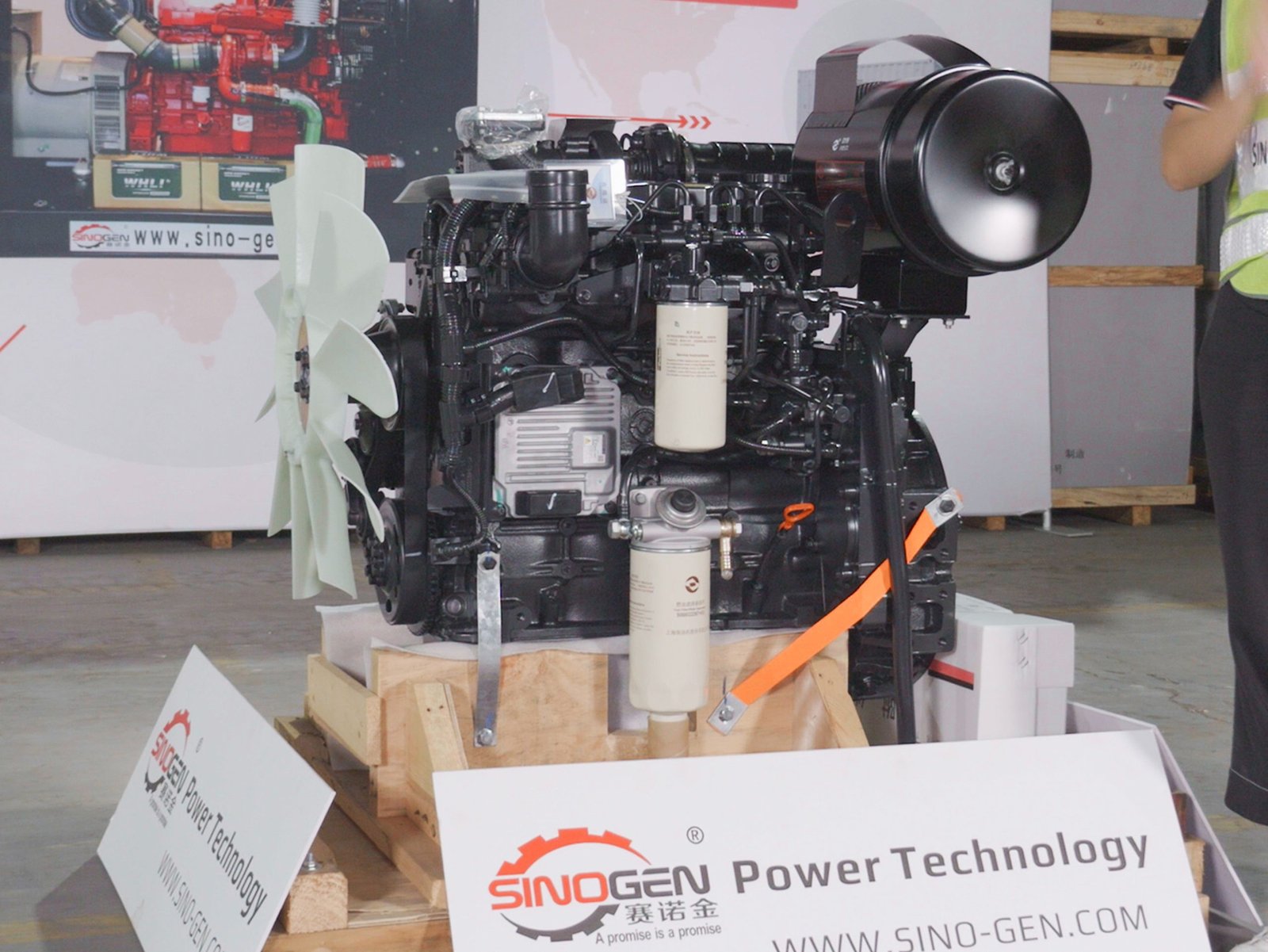

SDEC 4HTAA4.3-G36 G-Drive Engine
Prime Power : 125 kW @ 1800 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G21 G-Drive Engine
Prime Power : 136 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G22 G-Drive Engine
Prime Power : 150 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G23 G-Drive Engine
Prime Power : 180 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G31 G-Drive Engine
Prime Power : 136 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G32 G-Drive Engine
Prime Power : 150 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G33 G-Drive Engine
Prime Power : 180 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G34 G-Drive Engine
Prime Power : 205 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC 6HTAA6.5-G35 G-Drive Engine
Prime Power : 170 kW @ 1800 RPM
Displacement : 6.5 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC4H115D2 G-Drive Engine
Prime Power : 78 kW @ 1500 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC4H140D2 G-Drive Engine
Prime Power : 95 kW @ 1500 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC4H160D2 G-Drive Engine
Prime Power : 105 kW @ 1500 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC4H180D2 G-Drive Engine
Prime Power : 120 kW @ 1500 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC4H95D2 G-Drive Engine
Prime Power : 62 kW @ 1500 RPM
Displacement : 4.3 L
Number of Cylinders : 4
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC7H180D2 G-Drive Engine
Prime Power : 120 kW @ 1500 RPM
Displacement : 6.44 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC7H205D2 G-Drive Engine
Prime Power : 138 kW @ 1500 RPM
Displacement : 6.44 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC7H220D2 G-Drive Engine
Prime Power : 150 kW @ 1500 RPM
Displacement : 6.44 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC7H230D2 G-Drive Engine
Prime Power : 154 kW @ 1500 RPM
Displacement : 6.44 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
SDEC SC7H250D2 G-Drive Engine
Prime Power : 168 kW @ 1500 RPM
Displacement : 6.44 L
Number of Cylinders : 6
Cylinder Type : Dry Liner
Combustion Type : Direct Injection
